InstaWall, Insulated PUF and PIR (Fire-rated) panels are much superior alternative for conventional insulated walling and partition. It’s a pre-finished building panel with ideal fire and thermal properties. InstaWall reduces radiant heat transfer and enhance comfort level.

  • Very light weight core with zero Ozone Depletion Potential (ODP).
  • Quick and easy to install with self mating interlocking tongue and groove joints.
  • Excellent insulation R / U values drastically reduces radiant heat transfer and condensation

Application of InstaWall

Salient Features

  • High-performance PUF (Polyurethane Foam) or PIR (Polyisocyanurate Foam) core
  • Superior thermal insulation with high-density PUF or PIR core
  • High structural strength with PCGI, SS, or aluminum facings
  • Fire-resistant PIR options meeting international safety standards
  • Precision tongue-and-groove interlocking for airtight sealing
  • Moisture and condensation resistance for hygienic applications
  • Customizable panel thickness and surface finishes
  • Quick and easy modular installation for scalability
  • Eco-friendly, energy-efficient, and CFC-free insulation
  • Suitable for diverse industrial, commercial, and cleanroom applications
  • Tongue-and-groove panel joinery with cam-lock or concealed fasteners
  • Provides a seamless, airtight, and secure fit, reducing energy loss and improving insulation efficiency
  • Available in various thicknesses (30-50mm) based on insulation requirements
  • CFC-free insulation materials contribute to sustainable construction

Benefits of InstaWall

Why Rinac for Wall and Partition Panels?

Superior Thermal Insulation

  • Built with high-quality PUF (Polyurethane Foam) or PIR (Polyisocyanurate Foam) core, InstaWall ensures excellent thermal resistance.
  • Helps maintain consistent internal temperatures, reducing heat loss/gain and improving energy efficiency.

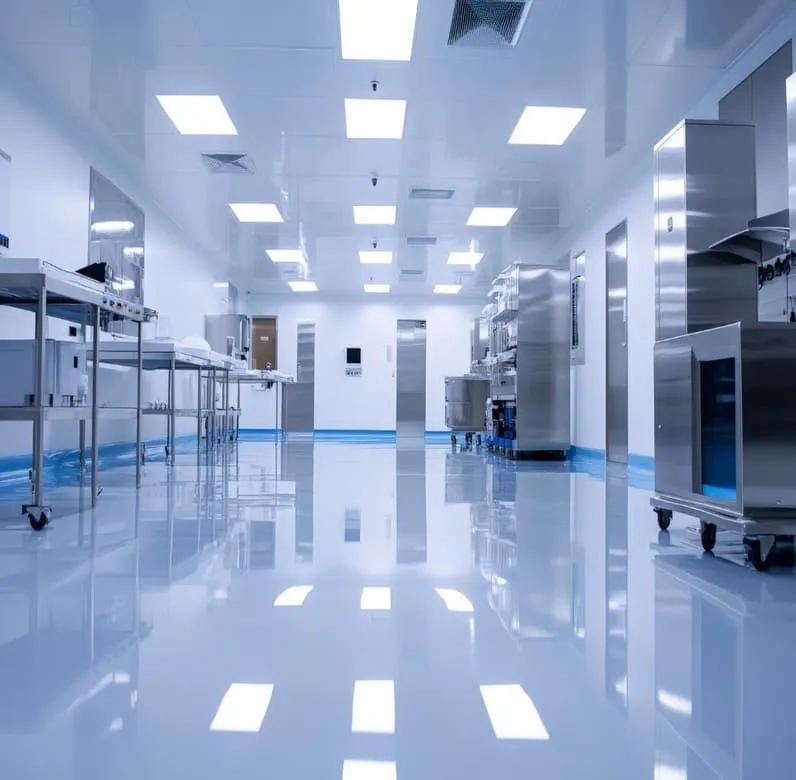

  • Ideal for cold storage, food processing units, and pharmaceutical cleanrooms where temperature control is critical.

High Structural Strength & Durability

  • Made with pre-coated galvanized steel (PCGI), stainless steel, or aluminum for long-lasting performance.
  • Resistant to wear and tear, ensuring reliability in harsh industrial environments.
  • Designed to withstand mechanical impact, moisture, and temperature fluctuations.

Quick & Hassle-Free Installation

  • Features an interlocking tongue-and-groove system for easy assembly.
  • Lightweight yet sturdy panels reduce installation time and labor costs.
  • Modular design allows for quick modifications and expansion.

Fire & Safety Compliance

  • Available with fire-rated PIR core for enhanced fire resistance.
  • Complies with international safety and building standards, making it ideal for critical industries.

Moisture & Condensation Resistance

  • Prevents water seepage and condensation, protecting interiors from mold and bacterial growth.
  • Essential for hygiene-sensitive environments like cleanrooms, food processing units, and pharma facilities.

Aesthetic & Customizable Design

  • Available in a range of finishes, colors, and thicknesses to match your project’s requirements.
  • Options for plain or ribbed surfaces for enhanced aesthetic appeal.
  • Cut-outs for doors, windows, and service ducts can be pre-integrated as per specifications.

Cost-Effective & Low Maintenance

  • Long lifespan with minimal maintenance requirements.
  • Reduces energy costs due to superior insulation properties.
  • One-time investment that ensures long-term savings.

Versatile Applications

  • Suitable for cold storage, industrial enclosures, cleanrooms, prefab buildings, and commercial spaces.
  • Used in food processing, pharmaceuticals, logistics, and modular construction projects.

Sustainable & Eco-Friendly

  • Supports green building initiatives with energy-efficient insulation.
  • Reduces carbon footprint by minimizing energy consumption.

Technical Specification

Lamination Pre-coated galvanised steel on either sides
Lamination thickness in mm WP 0.35 / 0.45 Outside/Inside
Lamination thickness in mm PP 0.45 / 0.45 both sides
Lamination colour Off white [RAL 9002]
Lamination finish Outside Serrated / Inside plane for Wall Panel [WP] panels and Both side plane finish for Partition panels [PP]
Item code WP-Wall Panel
InstaWall WP-20 / InstaWall WP-18
InstaWall WP-16 / InstaWall WP-14
InstaWall WP-12
PP-Partition Panel
InstaWall PP-20 / InstaWall PP-18
InstaWall PP-16 / InstaWall PP-14
InstaWall PP-12
Packing width 1025mm
Construction width 1000mm
Length available 12 feet / 14 feet / 16 feet / 18 feet / 20 feet
Panel thickness 50mm
Profile Inter connection Tongue & Groove joinery
Packaging Single panel
Area of panel in a packet 12 feet – 3.7 Sqm / 39.4 Sq.ft
14 feet – 4.2 Sqm / 45.8 Sq.ft
16 feet – 4.9 Sqm / 52.7 Sq.ft
18 feet – 5.4 Sqm / 58.9 Sq.ft
20 feet – 6.1 Sqm / 66.5 Sq.ft
Minimum order quantity 1 Packet
Ordering code InstaWall 50-20WP / InstaWall 50-18WP
InstaWall 50-16WP / InstaWall 50-14WP
InstaWall 50-12WP
InstaWall 50-20PP / InstaWall 50-18PP
InstaWall 50-16PP / InstaWall 50-14PP
InstaWall 50-12PP
