Looking for a smart roofing solution?

Prefabricated roofing panels offer numerous advantages including reduced installation time or speed of construction, consistent high-quality, durability, as well as reduced risk of construction hazards.

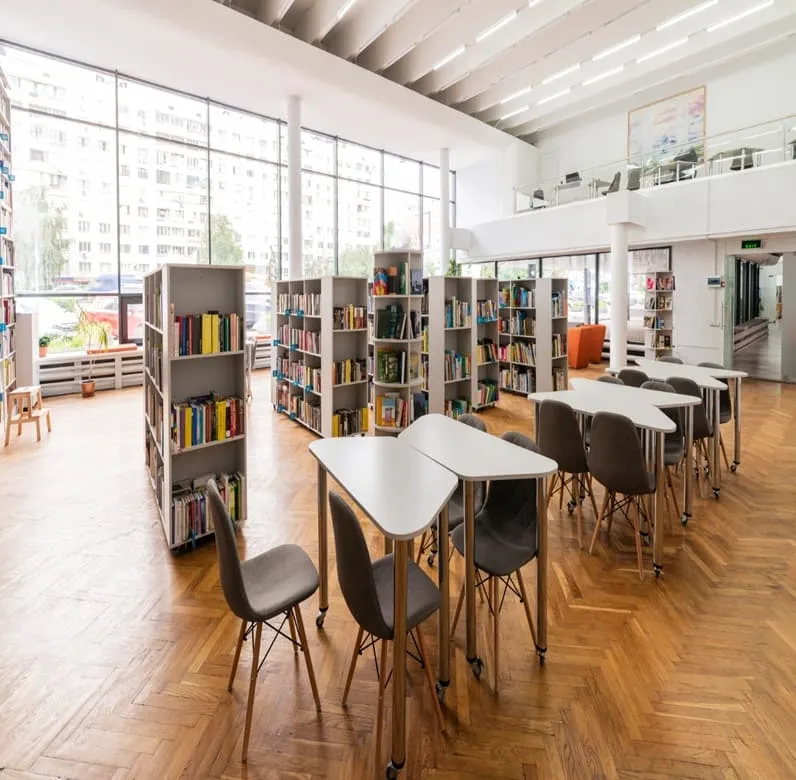

We have gone a step further to engineer these prefabricated roofing solutions that have unique insulation properties and are more effective than conventional roofs. Rinac’s CoolTop is a pre-fabricated, weather-proof insulated roofing solution for commercial, educational, and domestic buildings. Made of polyurethane foam (PUF) sandwiched between layers of water-proof and non-corrosive material, these roofing panels with thick insulation reduce the impact of extreme weather conditions including heat during the summers or incessant rainfalls during the monsoon.

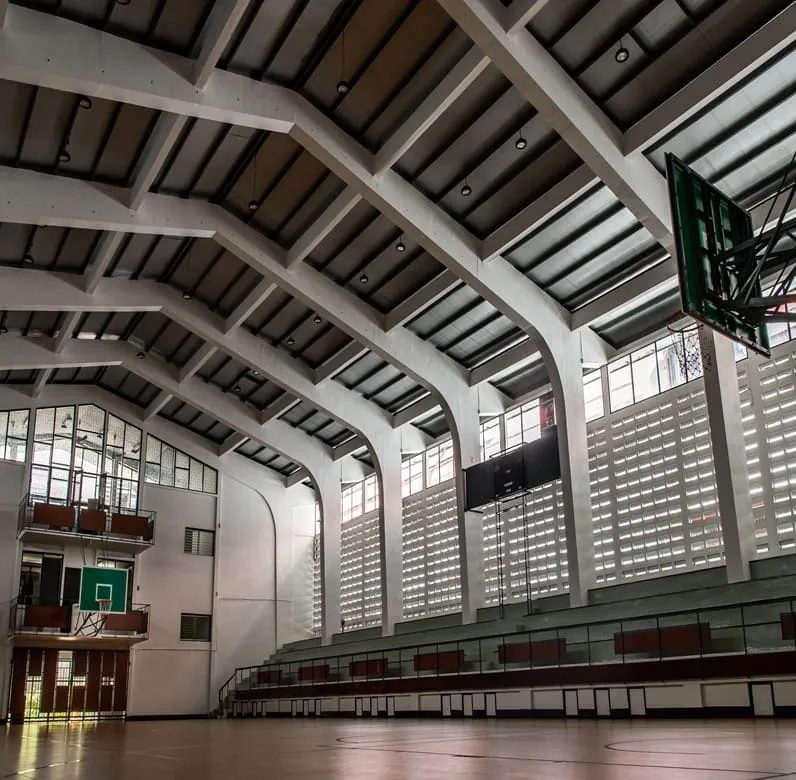

Applications Of CoolTop

Salient Feature

  • Rigid polyurethane foam insulation
  • Certified by ISO, OHSAS, EMS [IMS-ISO 18001 & 14001 of 2015 and OHSAS 18001/2007]
  • B2-grade fire-rated PIR material certified as CLASS ‘O’ building material in accordance with BS 476 part 6 & 7 standard
  • A wide range of working temperature, i.e.from -90°C to 120°C
  • Metal laminates of pre-painted galvanised steel (PPGS)
  • Overlap joinery with stitch screw and EPDM washers
  • Butyl sealants for leak-proof construction
  • Restricts heat transmission by around 8℃
  • Normal density of 40+_2 kg/m3
  • Absorbs the noise of rain falling on the roof surface
  • Sound-proof
  • Weather-resistant
  • The most acceptable material of construction (MOC) for HACCP and FDA approval

Benefits of CoolTop

Advantages of CoolTop

Advantages
  • Continuous production line for sandwich panels – <can you pls describe>
  • A continuous production line is meant for manufacturing sandwich panels with various cores like RPUF, PIR, FM PIR, Rockwool Panels sandwiched between two outer layers. Sandwich panels consist of sheet metal on either side or insulating core. The process involves feeding raw materials through a continuous sequence of steps, including bonding, heating, and curing. This method ensures high efficiency, consistent quality, and large-scale production of uniform panels, commonly used in construction, cold storage etc. for insulating walls, roofs, and ceilings.
  • Superior Thermal Insulation – CoolTop panels are designed with high-quality insulation (RPUF/PIR) to provide exceptional thermal performance, reducing energy consumption and maintaining optimal temperatures in buildings.
  • Fire-Resistant and Safety Compliant – CoolTop panels meet stringent fire safety standards, including FM Global approvals, ensuring high safety and compliance for sensitive applications.

Technical Specifications

Panel Core Material – Made of RPUF (Rigid Polyurethane Foam) or PIR (Polyisocyanurate Foam) or FM approved for superior thermal insulation and structural strength.

Thermal Conductivity (K-value)

  • RPUF: u = 0.020 W/mK
  • PIR: ≤ 0.020 W/mK (higher insulation efficiency).

Panel Thickness Options – Available in 50mm, 60mm, 80mm, 100mm, 120mm, 150mm, 200mm, based on insulation requirements.

Panel Density

  • RPUF & PIR Core: 40 ± 2 kg/m³, ensuring high compressive strength and durability.

Fire Resistance

  • PIR Panels: Enhanced fire resistance, conforming to ASTM E84 standards.
  • FM Approved PIR Panels

Surface Coatings

  • Pre-Painted Galvanized Steel (PPGI)
  • Pre-Painted Galvalume Steel (PPGL)
  • Stainless Steel (SS-304/316) – Ideal for food & pharma industries
  • Aluminium – Corrosion-resistant option for specialized applications

Roof Panel Width

Standard width: 1000mm (1m) for easy modular assembly.

Roofing Joint System

Features overlapping joints with weather-tight sealing, ensuring superior thermal efficiency and leak-proof installation.

Mechanical Strength

  • Compressive Strength: ≥ 120 KPa
  • Bending Strength: ≥ 250 kPa
  • Adhesion strength: > 100 KPa
  • Load-bearing capacity designed to withstand environmental stresses like wind and snow loads.

Dimensional stability:

< 1 percent for -48h @ -30°C.

Working temperature

-90°C to +90°C

Metal laminates

Pre-painted galvanized steel (PPGS)

Insulation

Rigid PUF

Joinery

Overlap joinery with stitch screw and EPDM washers

Butyl sealants for leak-proof construction

Normal panel width

1000 mm

Panel length

Single panel up to 14,500 mm

Portfolio - All Rinac Projects

DOWNLOAD ALL PRODUCT BROCHURES NOW

Gain instant access to detailed product specifications, key features, and the benefits of partnering with Rinac

Blogs

CUTTING-EDGE TECHNOLOGY AT WORK

Why Choose CoolTop for Your Construction Needs

Prefabricated roofing panels offer numerous advantages including reduced installation time or speed of construction, consistent high-quality, durability, as well as reduced risk of construction hazards.

Frequently Asked Questions

Cancels noise, reduces heat, light in weight, quick construction.

RPUF, PIR , FM, Rockwool Panels

Available in 50mm, 60mm, 80mm, 100mm, 120mm, 150mm, 200mm, based on insulation requirements.

Yes

FM and Rockwool: 2 Hours fire integrity as per BS476 Part 20 and 22

  • Pre-Painted Galvanized Steel (PPGI)
  • Pre-Painted Galvalume Steel (PPGL)
  • Stainless Steel (SS-304/316) – Ideal for food & pharma industries
  • Aluminium – Corrosion-resistant option for specialized applications

150 KG per sq m. Please contact us more details.

Yes

Cancels noise, reduces heat, light in weight, quick construction.

Industries:

  • Food Processing & Cold Storage -food storage, dairy processing, meat, and seafood industries.
  • Pharmaceutical & Healthcare – Used in pharma manufacturing, vaccine storage, and hospital sterile environments.
  • Agriculture & Horticulture – Perfect for greenhouses, post-harvest storage, and controlled-environment agriculture.
  • Automotive & Electronics – Ensures temperature stability for sensitive manufacturing processes and warehouses.
  • Logistics & Warehousing – Ideal for temperature-sensitive storage facilities.

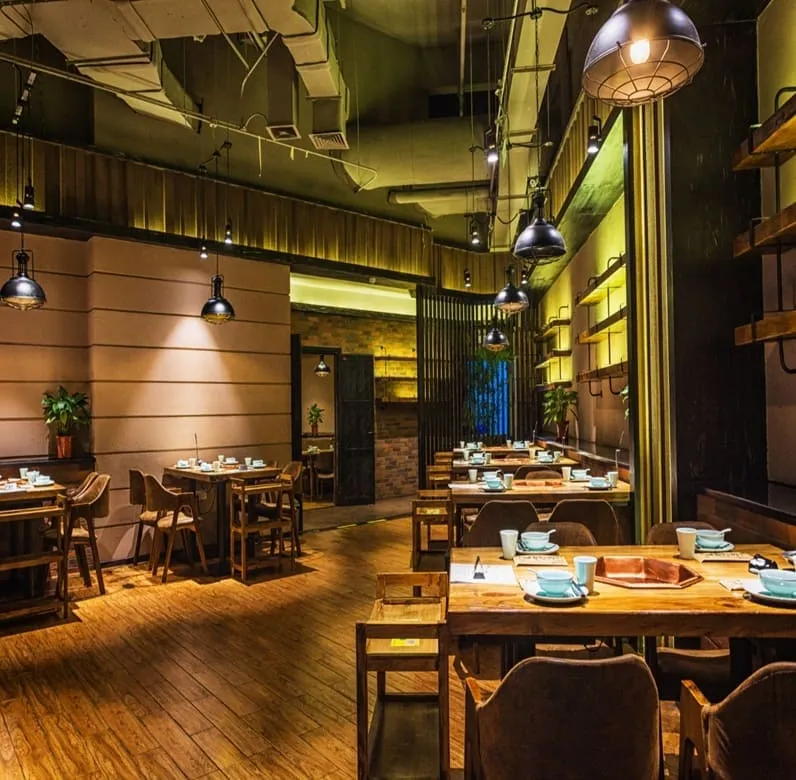

  • Hospitality & Retail – Great for supermarkets, hotels, and restaurants needing controlled storage for perishable goods.

Applications:

  • Industrial & Commercial Roofing – Provides insulation for large industrial setups, reducing heat load and energy costs.
  • Cold Chain Infrastructure – Ensures energy-efficient cold rooms, ripening chambers, and blast freezers.
  • Cleanroom Environments – Helps maintain controlled conditions for pharma, biotech, and electronics manufacturing.
  • Pre-engineered Buildings (PEBs) – Ideal for warehouses, factory sheds, and modular construction.
  • Energy-efficient Buildings – Reduces heat gain, lowering HVAC energy consumption.

The installation time for CoolTop panels depends on factors such as project size, site conditions, and complexity.

The expected lifespan of CoolTop roofing from Rinac is typically 25 to 30 years, depending on factors such as maintenance, environmental conditions, and usage.

The selection of CoolTop panels will depend on the application. Please contact Rinac for more information.
